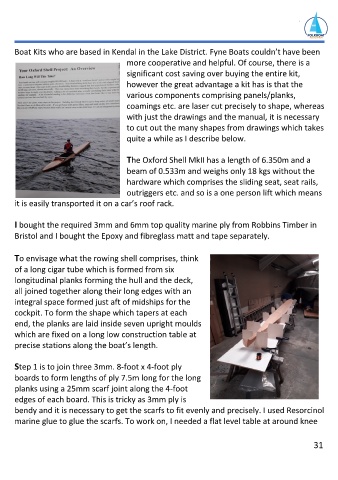

Boat Kits who are based in Kendal in the Lake District. Fyne Boats couldn’t have been
                                more cooperative and helpful. Of course, there is a
                                significant cost saving over buying the entire kit,
                                however the great advantage a kit has is that the
                                various components comprising panels/planks,
                                coamings etc. are laser cut precisely to shape, whereas
                                with just the drawings and the manual, it is necessary
                                to cut out the many shapes from drawings which takes
                                quite a while as I describe below.

                                The Oxford Shell MkII has a length of 6.350m and a
                                beam of 0.533m and weighs only 18 kgs without the
                                hardware which comprises the sliding seat, seat rails,
                                outriggers etc. and so is a one person lift which means
     it is easily transported it on a car’s roof rack.

     I bought the required 3mm and 6mm top quality marine ply from Robbins Timber in
     Bristol and I bought the Epoxy and fibreglass matt and tape separately.

     To envisage what the rowing shell comprises, think
     of a long cigar tube which is formed from six
     longitudinal planks forming the hull and the deck,
     all joined together along their long edges with an
     integral space formed just aft of midships for the
     cockpit. To form the shape which tapers at each
     end, the planks are laid inside seven upright moulds
     which are fixed on a long low construction table at
     precise stations along the boat’s length.

     Step 1 is to join three 3mm. 8-foot x 4-foot ply
     boards to form lengths of ply 7.5m long for the long
     planks using a 25mm scarf joint along the 4-foot
     edges of each board. This is tricky as 3mm ply is
     bendy and it is necessary to get the scarfs to fit evenly and precisely. I used Resorcinol
     marine glue to glue the scarfs. To work on, I needed a flat level table at around knee
